Q95SA stainless steel three-way ferrule ball valve


Product Name: Q95SA stainless steel three-way ferrule ball valve

Product model: Q95SA

Connection mode: thread, compression ferrule

Structural features: ferrule type at both ends

Product material: stainless steel 304 / 316

Thread standard: G, NPT, BSPT, BSP, DIN

Ferrule size:Ф6、Φ8、Ф10、Φ12、Ф14、Φ16、Ф18、Φ20、Ф22

Product pressure: ≤ 6.4 MPa

Operating temperature: ≤ 120 ℃

Medium used: water, oil, weak corrosive medium, etc

Handle material: plastic

Handle color: Black

Product Description:

Q95sa stainless steel three-way ferrule ball valve has the action of rotating 90 degrees. The cock body is a sphere with a circular through hole or channel passing through its axis. The ferrule ball valve is mainly used to cut off, distribute and change the flow direction of medium in the pipeline. It can be closed tightly only by rotating 90 degrees and a small rotating torque. Ferrule ball valve is suitable for switch and shut-off valve. L-type three-way ball valve is used for medium switching, and T-type three-way ball valve is used for medium diversion, confluence and flow direction switching. The ferrule ball valve has the characteristics of firm connection, high pressure resistance, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation, etc.The ferrule ball valve consists of three parts: joint body, ferrule and nut. When the ferrule and nut are sleeved on the steel pipe, the steel pipe is inserted into the joint body, and the nut is tightened, the outer side of the front end of the ferrule fits with the conical surface in the joint body, and the inner edge surface of the ferrule is evenly clamped into the steel pipe to form an effective seal.

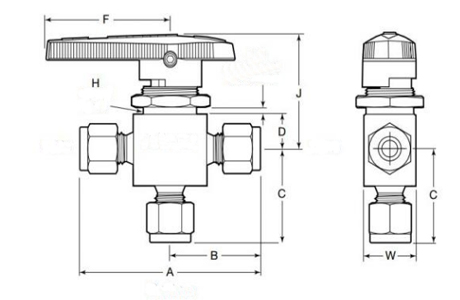

Structural drawing of q95sa stainless steel three-way ferrule ball valve:

Q95sa stainless steel three-way ferrule ball valve parts material:

Components	Material	standard
handle	Plastic black gray
Top wire	SCM435	DIN916-1980
Stem	316、304	GB/T1220-1992
Gasket	316、304	GB/T1220-1992
Sealing ring	RPTFE	HG2-535
Guide seat	316、/304	GB/T1220-1992
Sealing cap	RPTFE	HG2-535
Back mother	316/304	GB/T1220-1992
Valve body	316/304	GB/T1220-1992
Front card holder	316L/304	GB/T1220-1992
Rear card sleeve	316、304	GB/T1220-1992
Single card holder	316、304	GB/T1220-1992
Nut	316、304	GB/T1220-1992

Q95sa stainless steel three-way ferrule ball valve connection size:

Specifications	End Connection Size		Orifice		A
Specifications	(in)	(mm)	(in)	(mm)	(in)	(mm)
2	1/8	3.17	0.09	2.4	1.01	25.5
3	3/16	4.76	0.13	3.2	1.1	28
-4	1/4	6.35	0.19	4.8	1.2	30
6	3/8	9.52	0.28	7.1	1.45	36.5
-8	1/2	12.7	0.41	10.3	1.74	44.2
3mm	0.12	3	0.09	2.4	1.01	25.5
6mm	0.24	6	0.19	4.8	1.2	30
8mm	0.31	8	0.19	4.8	1.23	31.2
0mm	0.39	10	0.28	7.1	1.45	36.5
12mm	0.47	12	0.41	10.3	1.74	44.2

Specifications	B		C		D
Specifications	(in)	(mm)	(in)	(mm)	(in)	(mm)
2	1.01	25.5	1.36	34.5	0.59	15.1
3	1.1	28	1.36	34.5	0.59	15.1
4	1.2	30	1.47	37.3	0.78	19.8
6	1.45	36.5	2.07	52.5	1.13	28.7
8	1.74	44.2	2.44	62	1.5	38.1
3mm	1.01	25.5	1.36	34.5	0.59	15.1
6mm	1.2	30	1.47	37.3	0.59	15.1
8mm	1.23	31.2	1.47	37.3	0.78	19.8
10mm	1.45	36.5	2.07	52.5	1.13	28.7
12mm	1.74	44.2	2.44	62	1.5	38.1

Specifications	E		W		F		Cv
Specifications	(in)	(mm)	(in)	(mm)	(in)	(mm)	Cv
2	1/4	6.4	1.26	32	0.58	14.7	0.15
3	1/4	6.4	1.26	32	0.58	14.7	0.35
4	1/4	6.4	1.26	32	0.78	19.8	0.9
6	3/8	9.7	1.5	38.1	1.12	28.5	2
8	3/8	9.7	2.36	60	1.5	38	4.6
3mm	1/4	6.4	1.26	32	0.58	14.7	0.15
6mm	1/4	6.4	1.26	32	0.78	19.8	0.9
8mm	1/4	9.7	1.5	38.1	0.78	19.8	0.9
10mm	3/8	9.7	1.7	43	1.12	28.5	2
12mm	3/8	9.7	2.36	60	1.5	38	4.6
