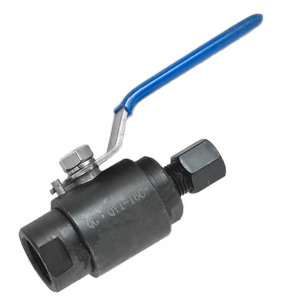

Ferrule ball valve

Product Name: ferrule ball valve

Product model: QG.QY1

Connection mode: thread, compression ferrule

Product material: WCB, stainless steel 304 / 316

Thread standard: G, NPT, BSPT, BSP, DIN

Ferrule size: Ф6、Φ8、Ф10、Φ12、Ф14、Φ16、Ф18、Φ20、Ф22

Product pressure: ≤ 6.4 MPa

Operating temperature: ≤ 200 ℃

Medium used: water, oil, weak corrosive medium, etc

Handle color: red, yellow, blue

Handle material: 304, 201

Product Description:

Manual switch of ferrule ball valve, floating ball seat, ferrule connection, split ball core of valve body, side installation, valve core 304 stainless steel, valve seat PTFE, PTFE material, integral SS304 stainless steel valve body, degreasing treatment is required when the medium is oxygen. Installation and disassembly, firm connection, high pressure capacity, good sealing and repeatability, convenient installation and maintenance, safe and reliable operation, etc. It is widely used in hydraulic and pneumatic pipelines, business inflation, closing and venting of measuring instruments, vacuum systems such as control panels, high purification devices, high-pressure systems, gas analysis, test equipment, grain processing, test stations and all other appropriate equipment and places.

Structural drawing of ferrule ball valve:
